| Ⅰ . 短环 SHORT LINK CHAIN |
|
|

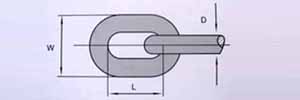

LINK SPECIFICATION |
TEST
LOAD |
BREAKING
LOAD |
NET WTPER200FT
(KG) |
|
D |
L |
W |
|
IN |
MM |
MM |
MM |
KG |
KG |
B.F. |
H.D.G |
|
1/8 |
3.20 |
16 |
12 |
200 |
400 |
11.40 |
11.74 |
|
5/32 |
4.00 |
18.5 |
14.5 |
300 |
600 |
18.60 |
19.00 |
|
3/16 |
4.70 |
19 |
17 |
400 |
800 |
26.20 |
27.00 |
|
7/32 |
5.50 |
20 |
19 |
550 |
1100 |
36.80 |
38.00 |
|
1/4 |
6.35 |
22 |
21 |
750 |
1500 |
50.00 |
51.50 |
|
5/16 |
7.94 |
26.5 |
27.2 |
1200 |
2400 |
80.00 |
82.40 |
|
3/8 |
9.50 |
30 |
32 |
1700 |
3400 |
122.00 |
125.70 |
|
7/16 |
11.11 |
34 |
36 |
2300 |
4600 |
164.00 |
169.00 |
|
1/2 |
12.70 |
39 |
43 |
3000 |
6000 |
210.00 |
216.00 |
|
5/8 |
15.80 |
45 |
53 |
4700 |
9400 |
334.00 |
344.00 |
|
3/4 |
19.00 |
55 |
63 |
6800 |
13600 |
485.00 |
499.00 |
|
7/8 |
22.20 |
64 |
74 |
9250 |
18500 |
656.00 |
675.00 |
|
1 |
25.40 |
73 |
84 |
12150 |
24300 |
870.00 |
896.00 | |
| Ⅱ . 中长环链条 MEDIUM LINK
CHAIN |
|
LINK SPECIFICATION |
TEST
LOAD |
BREAKING
LOAD |
NET WTPER200FT
(KG) |
|
D |
L |
W |
|
IN |
MM |
MM |
MM |
KG |
KG |
B.F. |
H.D.G |
|
1/8 |
3.20 |
20 |
12 |
200 |
400 |
10.80 |
11.00 |
|
5/32 |
4.00 |
23 |
15 |
300 |
600 |
17.40 |
18.00 |
|
3/16 |
4.70 |
25 |
18 |
400 |
800 |
24.40 |
25.00 |
|
7/32 |
5.50 |
26 |
19 |
550 |
1100 |
34.00 |
35.00 |
|
1/4 |
6.35 |
26 |
23 |
750 |
1500 |
48.80 |
50.00 |
|
5/16 |
7.94 |
32 |
29 |
1200 |
2400 |
76.00 |
78.00 |
|
3/8 |
9.50 |
35 |
35 |
1700 |
3400 |
111.00 |
114.00 |
|
7/16 |
11.11 |
38 |
38 |
2300 |
4600 |
154.00 |
158.00 |
|
1/2 |
12.70 |
50 |
45.5 |
3000 |
6000 |
194.00 |
200.00 |
|
5/8 |
15.80 |
60 |
56.7 |
4700 |
9400 |
303.00 |
312.00 |
|
3/4 |
19.00 |
76 |
69 |
6800 |
13600 |
432.00 |
445.00 |
|
7/8 |
22.20 |
90 |
80 |
9250 |
18500 |
586.00 |
603.00 |
|
1 |
25.40 |
105 |
95 |
12150 |
24300 |
770.00 |
792.00 | |
| Ⅲ . 长环链条 LONG LINK CHAIN
|
|
LINK SPECIFICATION |
TEST
LOAD |
BREAKING
LOAD |
NET WTPER200FT
（ KG ） |
|
D |
L |
W |
|
IN |
MM |
MM |
MM |
KG |
KG |
B.F. |
H.D.G |
|
1/8 |
3.20 |
23 |
12 |
200 |
400 |
10.40 |
10.70 |
|
5/32 |
4.00 |
27 |
15 |
300 |
600 |
16.60 |
17.50 |
|
3/16 |
4.70 |
31 |
17 |
400 |
800 |
22.40 |
23.30 |
|
7/32 |
5.50 |
32 |
19 |
550 |
1100 |
32.00 |
33.00 |
|
1/4 |
6.35 |
33 |
21 |
750 |
1500 |
43.50 |
44.80 |
|
5/16 |
7.94 |
48 |
31 |
1200 |
2400 |
68.00 |
70.00 |
|
3/8 |
9.50 |
60 |
37 |
1700 |
3400 |
96.00 |
99.00 |
|
7/16 |
11.11 |
71 |
41 |
2300 |
4600 |
126.00 |
129.00 |
|
1/2 |
12.70 |
85 |
48.5 |
3000 |
6000 |
167.00 |
172.00 |
|
5/8 |
15.80 |
114 |
61.5 |
4700 |
9400 |
256.00 |
264.00 |
|
3/4 |
19.00 |
125 |
75 |
6800 |
13600 |
381.00 |
392.00 |
|
7/8 |
22.20 |
140 |
88 |
9250 |
18500 |
527.00 |
543.00 |
|
1 |
25.40 |
155 |
100 |
12150 |
24300 |
696.00 |
716.00 |
|
