| Ⅰ .PROOF COIL CHAIN ASTM80 （ G30 ） |
|
TRADE
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT |
PROOF TEST |
BREAKING
FORCE MINIMUM |
MAXLENGTH
PER100LINKS |
MAXLENGTH
PER100FEET |
|
IN |
MM |
LBS |
KG |
LBS |
KN |
LBS |
KN |
IN |
M |
LBS |
KG |
|
3/16 |
0.218 |
5.5 |
750 |
340 |
1500 |
6.7 |
3000 |
13.3 |
99 |
2.51 |
42 |
19 |
|
1/14 |
0.281 |
7.1 |
1250 |
570 |
2500 |
11.1 |
5000 |
22.2 |
104 |
2.64 |
76 |
34 |
|
5/16 |
0.343 |
8.7 |
1900 |
860 |
3800 |
16.9 |
7600 |
33.8 |
114 |
2.89 |
115 |
52 |
|
3/8 |
0.406 |
10.3 |
2650 |
1200 |
5300 |
23.6 |
10600 |
47.2 |
128 |
3.25 |
166 |
75 |
|
7/16 |
0.468 |
11.9 |
3500 |
1590 |
7000 |
31.1 |
14000 |
62.3 |
142 |
3.60 |
225 |
102 |
|
1/2 |
0.531 |
13.5 |
4500 |
2040 |
9000 |
40.0 |
18000 |
80.1 |
156 |
3.96 |
289 |
131 |
|
5/8 |
0.656 |
16.7 |
6900 |
3130 |
13800 |
61.4 |
27600 |
122.8 |
194 |
4.92 |
425 |
193 |
|
3/4 |
0.781 |
19.8 |
9750 |
4420 |
19500 |
86.7 |
39000 |
173.5 |
220 |
5.59 |
612 |
278 | |
| Ⅱ .HIGH TEST CHAIN ASTM80 （ G43 ） |
 |
|
TRADE
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT |
PROOF TEST |
BREAKING
FORCE MINIMUM |
MAXLENGTH
PER100LINKS |
MAXLENGTH
PER100FEET |
|
IN |
MM |
LBS |
KG |
LBS |
KN |
LBS |
KN |
IN |
M |
LBS |
KG |
|
1/4 |
0.281 |
7.1 |
2600 |
1180 |
4300 |
19.1 |
7750 |
34.5 |
98 |
2.49 |
84 |
38 |
|
5/16 |
0.343 |
8.7 |
3900 |
1770 |
6400 |
28.5 |
11600 |
51.6 |
110 |
2.79 |
120 |
54 |
|
3/8 |
0.406 |
10.3 |
5400 |
2450 |
8900 |
39.6 |
16200 |
72.1 |
134 |
3.40 |
176 |
80 |
|
7/16 |
0.468 |
11.9 |
7200 |
3260 |
11900 |
52.9 |
21500 |
95.6 |
140 |
3.55 |
230 |
104 |
|
1/2 |
0.531 |
13.5 |
9200 |
4170 |
15300 |
68.1 |
27600 |
122.8 |
150 |
4.06 |
300 |
136 | |
| Ⅲ .TRANSPORT CHAIN ASTM80 （ G70 ） |
 |
|
TRADE
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT |
PROOF TEST |
BREAKING
FORCE MINIMUM |
MAXLENGTH
PER100LINKS |
MAXWENGTH
PER100FEET |
|
IN |
MM |
LBS |
KG |
LBS |
KN |
LBS |
KN |
IN |
M |
LBS |
KG |
|
1/4 |
0.281 |
7.1 |
3150 |
1430 |
6300 |
28.0 |
12600 |
56.1 |
98 |
2.49 |
84 |
38 |
|
5/16 |
0.343 |
8.7 |
4700 |
2130 |
9400 |
41.8 |
18800 |
83.6 |
110 |
2.79 |
120 |
54 |
|
3/8 |
0.406 |
10.3 |
6600 |
3000 |
13200 |
58.7 |
26400 |
117.4 |
134 |
3.40 |
176 |
80 |
|
1/2 |
0.531 |
13.5 |
11300 |
5130 |
22600 |
100.5 |
45200 |
201.1 |
160 |
4.06 |
300 |
136 | |
 |
|
| Ⅰ .PROOF COIL CHAIN NACM90(G30)
|
|
NOMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT(MAX) |
PROOF TEST
(MIN) |
BREAKING
FORCE MIN |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
4.0 |
1/8 |
4.0 |
0.156 |
170 |
375 |
3.6 |
800 |
7.1 |
1600 |
23.9 |
0.94 |
6.4 |
0.25 |
|
5.5 |
3/16 |
5.5 |
0.217 |
365 |
800 |
7.2 |
1600 |
14.3 |
3200 |
24.8 |
0.98 |
7.7 |
0.30 |
|
7.0 |
1/4 |
7.0 |
0.276 |
580 |
1300 |
11.6 |
2600 |
23.1 |
5200 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8.0 |
5/16 |
8.0 |
0.315 |
860 |
1900 |
15.1 |
3400 |
30.2 |
6800 |
32.8 |
1.29 |
11.2 |
0.44 |
|
10.0 |
3/8 |
10.0 |
0.394 |
1200 |
2650 |
23.6 |
5300 |
47.1 |
10600 |
35.0 |
1.38 |
14.0 |
0.55 |
|
13.0 |
1/2 |
13.0 |
0.512 |
2030 |
4500 |
39.8 |
8950 |
79.6 |
17900 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16.0 |
5/8 |
16.0 |
0.630 |
3130 |
6900 |
60.3 |
13600 |
120.6 |
27200 |
56.0 |
2.20 |
20.0 |
0.79 |
|
20.0 |
3/4 |
20.0 |
0.787 |
4800 |
10600 |
94.3 |
21200 |
188.5 |
42400 |
70.0 |
2.76 |
25.0 |
0.98 |
|
22.0 |
7/8 |
22.0 |
0.866 |
5810 |
12800 |
114.1 |
25600 |
228.1 |
51200 |
77.0 |
3.03 |
27.5 |
1.08 |
|
25.0 |
1 ″ |
26.0 |
1.020 |
8140 |
17900 |
159.1 |
35800 |
318.2 |
71600 |
90.9 |
3.58 |
31.7 |
1.25 | |
| Ⅱ .HIGH TEST CHAIN NACM90 （ G43 ）
|
|
|
NOMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT(MAX) |
PROOF TEST
(MIN) |
BREAKING
FORCE MIN |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
7.0 |
1/4 |
7.0 |
0.276 |
1180 |
2600 |
16.6 |
3750 |
33.1 |
7500 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8.0 |
5/16 |
8.0 |
0.315 |
1770 |
3900 |
21.6 |
4900 |
43.2 |
9700 |
32.8 |
1.29 |
11.2 |
0.44 |
|
10.0 |
3/8 |
10.0 |
0.394 |
2450 |
5400 |
33.8 |
7600 |
67.6 |
15200 |
35.0 |
1.38 |
14.0 |
0.55 |
|
13.0 |
1/2 |
13.0 |
0.512 |
4170 |
9200 |
57.1 |
12900 |
114.2 |
25700 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16.0 |
5/8 |
16.0 |
0.63 |
5220 |
11500 |
86.5 |
19500 |
172.9 |
38900 |
56.0 |
2.20 |
20.0 |
0.79 | |
| Ⅲ .TRANSPORT CHAIN NACM90 （ G70 ）
|
|
|
NOMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT(MAX) |
PROOF TEST
(MIN) |
BREAKING
FORCE MIN |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
7.0 |
1/4 |
7.0 |
0.276 |
1430 |
3150 |
27.0 |
6100 |
53.9 |
12100 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8.7 |
5/16 |
8.7 |
0.343 |
2130 |
4700 |
41.6 |
9400 |
83.5 |
18800 |
33.5 |
1.32 |
12.2 |
0.48 |
|
10.0 |
3/8 |
10.0 |
0.394 |
2990 |
6600 |
55.0 |
12400 |
110.0 |
24700 |
35.0 |
1.38 |
14.0 |
0.55 |
|
13.0 |
1/2 |
13.0 |
0.512 |
5130 |
11300 |
92.9 |
20900 |
185.8 |
41800 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16.0 |
5/8 |
16.0 |
0.63 |
7170 |
15800 |
140.4 |
31600 |
280.8 |
63200 |
56.0 |
2.20 |
20.0 |
0.79 | |
 |
|
| Ⅰ .PROOF COIL CHAIN NACM96 （ G30 ）
|
|
NOMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT(MAX) |
PROOF TEST
(MIN) |
BREAKING
FORCE MIN |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
4.0 |
1/8 |
4.0 |
0.156 |
180 |
400 |
3.6 |
800 |
7.2 |
1600 |
23.9 |
0.94 |
6.4 |
0.25 |
|
5.5 |
3/16 |
5.5 |
0.217 |
365 |
800 |
7.2 |
1500 |
14.4 |
3200 |
24.8 |
0.98 |
7.7 |
0.30 |
|
7.0 |
1/4 |
7.0 |
0.276 |
580 |
1300 |
11.6 |
2600 |
23.2 |
5200 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8.0 |
5/16 |
8.4 |
0.331 |
860 |
1900 |
16.9 |
3800 |
33.8 |
7600 |
32.8 |
1.29 |
11.2 |
0.44 |
|
10.0 |
3/8 |
10.0 |
0.394 |
1200 |
2650 |
23.5 |
5300 |
47.2 |
10600 |
35.0 |
1.38 |
14.0 |
0.55 |
|
11.9 |
7/16 |
11.9 |
0.488 |
1680 |
3700 |
32.9 |
7400 |
65.8 |
14800 |
41.5 |
1.64 |
16.6 |
0.65 |
|
13.0 |
1/2 |
13.0 |
0.512 |
2030 |
4500 |
40.0 |
9000 |
80.0 |
18000 |
45.6 |
1.79 |
18.2 |
0.72 |
|
16.0 |
5/8 |
16.0 |
0.630 |
3130 |
6900 |
61.3 |
13800 |
122.8 |
27600 |
56.0 |
2.20 |
20.0 |
0.79 |
|
20.0 |
3/4 |
20.0 |
0.787 |
4800 |
10500 |
94.3 |
21200 |
188.6 |
42400 |
70.0 |
2.76 |
25.0 |
0.98 |
|
22.0 |
7/8 |
22.0 |
0.865 |
5810 |
12800 |
114.1 |
25600 |
228.2 |
51200 |
77.0 |
3.03 |
27.5 |
1.08 |
|
25.0 |
1 |
26.0 |
1.020 |
8140 |
17900 |
159.1 |
35800 |
318.2 |
71600 |
90.9 |
3.58 |
31.7 |
1.25 | |
| Ⅱ .HIGH TEST CHAIN NACM96 （ G43 ）
|
|
|
NOMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT(MAX) |
PROOF TEST
(MIN) |
BREAKING
FORCE MIN |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
7.0 |
1/4 |
7.0 |
0.276 |
1180 |
2800 |
17.3 |
3900 |
34.6 |
7800 |
31.5 |
1.24 |
9.8 |
0.38 |
|
8.7 |
5/16 |
8.7 |
0.343 |
17700 |
3900 |
26.0 |
5850 |
52.0 |
11700 |
32.8 |
1.29 |
11.2 |
0.44 |
|
10.0 |
3/8 |
10.3 |
0.406 |
2450 |
5400 |
36.0 |
8100 |
72.0 |
16200 |
35.0 |
1.38 |
14.0 |
0.55 |
|
11.9 |
7/16 |
11.9 |
0.468 |
3270 |
7200 |
48.0 |
10800 |
96.0 |
21600 |
41.6 |
1.64 |
16.6 |
0.65 |
|
13.0 |
1/2 |
13.5 |
0.531 |
4170 |
9200 |
61.3 |
13800 |
122.6 |
27600 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16.0 |
5/8 |
16.0 |
0.63 |
5910 |
13000 |
86.5 |
19500 |
173.0 |
39000 |
56.0 |
2.20 |
20.0 |
0.79 | |
| Ⅲ .TRANSPORT CHAIN NACM96 （ G70 ）
|
|
|
NOMINAL
SIZE |
MATERIAL
DIAMETER |
WORKING
LOAD LIMIT(MAX) |
PROOF TEST
(MIN) |
BREAKING
FORCE MIN |
INSIDE
LENGTH(MAX) |
INSIDE
WIDTH(MIN) |
|
MM |
IN |
MM |
IN |
KG |
LB |
KN |
LB |
KN |
LB |
MM |
IN |
MM |
IN |
|
7.0 |
1/4 |
7.0 |
0.281 |
1430 |
3150 |
28.0 |
6300 |
56.0 |
12600 |
31.8 |
1.24 |
9.8 |
0.38 |
|
8.7 |
5/16 |
8.7 |
0.343 |
2130 |
4700 |
41.8 |
9400 |
83.6 |
18800 |
32.8 |
1.29 |
11.2 |
0.44 |
|
11.9 |
3/8 |
10.3 |
0.406 |
2990 |
6600 |
58.7 |
13200 |
117.4 |
26400 |
35.0 |
1.38 |
14.0 |
0.55 |
|
13.0 |
1/2 |
13.5 |
0.531 |
5130 |
11300 |
100.4 |
22600 |
200.8 |
45200 |
45.5 |
1.79 |
18.2 |
0.72 |
|
16.0 |
5/8 |
16.0 |
0.630 |
7170 |
15800 |
140.4 |
31600 |
280.8 |
63200 |
56.0 |
2.20 |
20.0 |
0.79 | |
|
|
 |

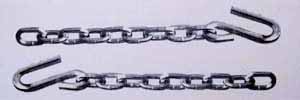

| Ⅰ . 链条 2 头配 S 钩 CHAIN WITH S HOOKS
ON BOTH ENDS |
|
SIZE |
ASTM80 |
NACM90 |
NACM96 |
|
WT |
WL |
BL |
WT |
WL |
BLKG |
WT |
WL |
BLKG |
|
KG |
LB |
LB |
KG |
LB |
LB |
KG |
LB |
LB |
|
3/16 ″× 48 ″ |
0.8 |
800 |
3200 |
0.8 |
800 |
3200 |
0.8 |
800 |
3200 |
|
1/4 ″× 48 ″ |
1.5 |
1250 |
5000 |
1.4 |
1300 |
5200 |
1.4 |
1300 |
5000 |
|
5/16 ″× 48 ″ |
2.2 |
1900 |
7600 |
1.9 |
1900 |
6800 |
2.2 |
1900 |
7600 | |
WT-WEIGHT PER PLECE
WL-WORKING
LOAD
BL-BREAKING LOAD |

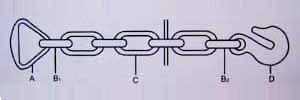

Ⅱ . 链条配三角环和抓钩
CHAIN WITH
DELA RING AND GRAB HOOK EACH ON ONE END |
 |
|
STOCK |
A |
B1 |
C |
B2 |
D |
LENGTH |
WEIGHT |
B.L. |
PC/BAG |
|
SJH-001 |
2 ″ |
3/8 ″ |
5/16 ″× 11L |
3/8 ″ |
5/16 ″ |
18 ″ |
1.17KG |
10000LB |
50 |
|
SJH-002 |
2 ″ |
3/8 ″ |
5/16 ″× 11L |
3/8 ″ |
3/8 ″ |
18 ″ |
1.17KG |
10000LB |
50 |
|
SJH-003 |
3 ″ |
7/16 ″ |
5/16 ″× 10L |
7/16 ″ |
5/16 ″ |
18 ″ |
1.32KG |
16200LB |
35 |
|
SJH-004 |
3 ″ |
7/16 ″ |
3/8 ″× 9L |
7/16 ″ |
3/8 ″ |
18 ″ |
1.48KG |
16200LB |
35 |
|
SJH-005 |
3 ″ |
7/16 ″ |
3/8 ″× 5L |
7/16 ″ |
3/8 ″ |
12 ″ |
1.28KG |
16200LB |
35 |
|
SJH-006 |
4 ″ |
7/16 ″ |
3/8 ″× 9L |
7/16 ″ |
3/8 ″ |
18 ″ |
1.68KG |
20000LB |
35 |
|
SJH-007 |
* |
3/8 ″ |
5/16 ″× 10L |
3/8 ″ |
5/16 ″ |
18 ″ |
1.30KG |
11000LB |
35 |
|
SJH-008 |
* |
7/16 ″ |
3/8 ″× 9L |
7/16 ″ |
3/8 ″ |
18 ″ |
1.35KG |
16200LB |
35 | |

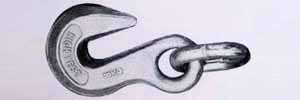

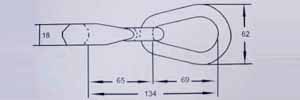

Ⅲ .1/2 ″梨形环带 3/8 ″单眼抓钩
1/2 ″
PEAR LINK WITH3/8 ″ EYE GRAB HOOK |
|
   |

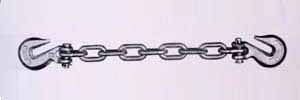

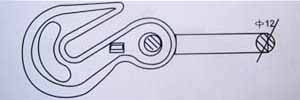

Ⅳ . 链条配抓钩（羊角 / 单眼）
CHAINS WITH
CLEVIS/EYE GRAB HOOKS ON BOTH END |
 |
|
SIZE |
ASTM80 |
NACM90 |
NACM96 |
PC/DRUM |
|
WT |
W.L. |
B.L. |
WT |
W.L. |
B.L. |
WT |
W.L. |
B.L. |
|
KG |
LB |
LB |
KG |
LB |
LB |
KG |
LB |
LB | |

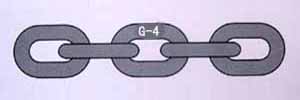

| GRADE 43 |
|
1/14 ″×
14FT |
5.0 |
2600 |
7750 |
4.5 |
2600 |
7500 |
4.5 |
2600 |
7800 |
50 |
|
1/4 ″× 16FT |
6.0 |
2600 |
7750 |
5.0 |
2600 |
7500 |
5.0 |
2600 |
7800 |
40 |
|
5/16 ″× 14FT |
7.5 |
3900 |
11600 |
6.0 |
3900 |
9700 |
7.0 |
3900 |
7800 |
35 |
|
5/16 ″× 16FT |
8.5 |
3900 |
11600 |
6.5 |
3900 |
9700 |
8.0 |
3900 |
11700 |
30 |
|
5/16 ″× 18FT |
9.5 |
3900 |
11600 |
7.5 |
3900 |
9700 |
9.0 |
3900 |
11700 |
30 |
|
5/16 ″× 20FT |
10.5 |
3900 |
11600 |
8.0 |
3900 |
9700 |
9.5 |
3900 |
11700 |
25 |
|
5/16 ″× 25FT |
13.0 |
3900 |
11600 |
10.0 |
3900 |
9700 |
12.0 |
3900 |
11700 |
20 |
|
5/16 ″× 30FT |
15.5 |
3900 |
11600 |
12.0 |
3900 |
9700 |
14.0 |
3900 |
11700 |
20 |
|
3/8 ″× 14FT |
10.5 |
5400 |
16200 |
9.5 |
5400 |
15200 |
10.0 |
5400 |
16200 |
25 |
|
3/8 ″× 16FT |
12.0 |
5400 |
16200 |
11.0 |
5400 |
15200 |
11.5 |
5400 |
16200 |
25 |
|
3/8 ″× 20FT |
15.0 |
5400 |
16200 |
13.5 |
5400 |
15200 |
13.5 |
5400 |
16200 |
20 |
|
3/8 ″× 25FT |
18.5 |
5400 |
16200 |
16.5 |
5400 |
15200 |
17.5 |
5400 |
16200 |
15 | |

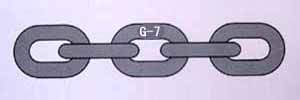

| GRADE 70 |
|
1/4 ″×
14FT |
5.0 |
3150 |
12600 |
4.5 |
3150 |
12100 |
4.0 |
3150 |
12600 |
50 |
|
1/4 ″× 16FT |
6.0 |
3150 |
12600 |
5.0 |
3150 |
12100 |
5.0 |
3150 |
12600 |
40 |
|
5/16 ″× 14FT |
7.5 |
4700 |
18800 |
6.0 |
4700 |
18800 |
7.0 |
4700 |
18800 |
35 |
|
5/16 ″× 16FT |
8.5 |
4700 |
18800 |
6.5 |
4700 |
18800 |
8.0 |
4700 |
18800 |
30 |
|
5/16 ″× 18FT |
9.5 |
4700 |
18800 |
7.5 |
4700 |
18800 |
9.0 |
4700 |
18800 |
30 |
|
5/16 ″× 20FT |
10.5 |
4700 |
18800 |
8.0 |
4700 |
18800 |
10.0 |
4700 |
18800 |
25 |
|
5/16 ″× 25FT |
13.0 |
4700 |
18800 |
10.0 |
4700 |
18800 |
12.0 |
4700 |
18800 |
20 |
|
5/16 ″× 30FT |
15.5 |
4700 |
18800 |
12.0 |
4700 |
18800 |
14.5 |
4700 |
18800 |
20 |
|
3/8 ″× 14FT |
10.5 |
6600 |
26400 |
9.5 |
6600 |
24700 |
10.0 |
6600 |
26400 |
25 |
|
3/8 ″× 16FT |
12.0 |
6600 |
26400 |
11.0 |
6600 |
24700 |
11.5 |
6600 |
26400 |
25 |
|
3/8 ″× 20FT |
15.0 |
6600 |
26400 |
13.5 |
6600 |
24700 |
14.5 |
6600 |
26400 |
20 |
|
3/8 ″× 25FT |
18.5 |
6600 |
26400 |
16.5 |
6600 |
24700 |
18.0 |
6600 |
26400 |
15 | |
| |
